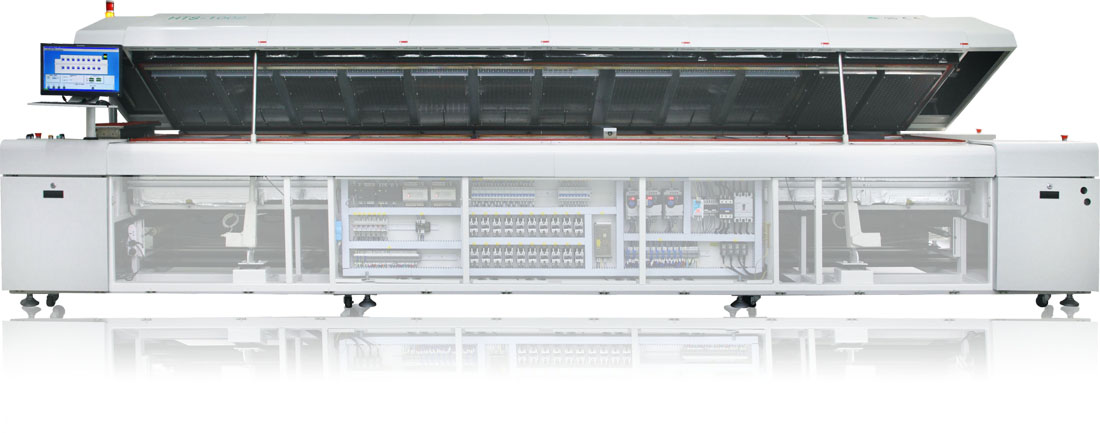

HB 0601

Dimension： L×W×H (mm) : 3670*1335*1470

Number Of Heating Zone : Top 6 & Bottom 6

Number Of Cooling Zone : 1 (inside)

Effective Heating Length : 2330mm

Cooling Zone Length : 400mm

Total Power : 42KW

Startup Power : 26KW

Normal Power Consumption : Approx. 8KW

Warming-up Time : 25 min.

PCB Width Range (mm) : 50 – 460mm

Precision Of Temp. Control : ±1℃

Flux Filtering & Exhaust System : Standart

Forced Air Cooling ( Inside & External) : Standart

Auto Timer : Standart

Options :

NITROGEN SYSTEM

Nitrogen Flow Meter

Nitrogen Consumption

Nitrogen Ready Piping

Oxygen Analyzer

Water Chiller

E-APS Profiling System (OEM by KIC)

Center Support System
